Turbo
A Gunther Werks restoration always retains the original car’s iconic attributes, enhancing the analogue driving experience offered by the car, while at the same time bringing performance up to and beyond today's standards. Each commission features a bespoke interior and exterior combination that is unique to every car remastered by Gunther Werks.
600<br> hp
Standard
850<br> hp
Track Mode
2,700 <br>lbs
Curb Weight
4.0<br>Liter
Twin-Turbo
Turbo
Remastering
an Icon

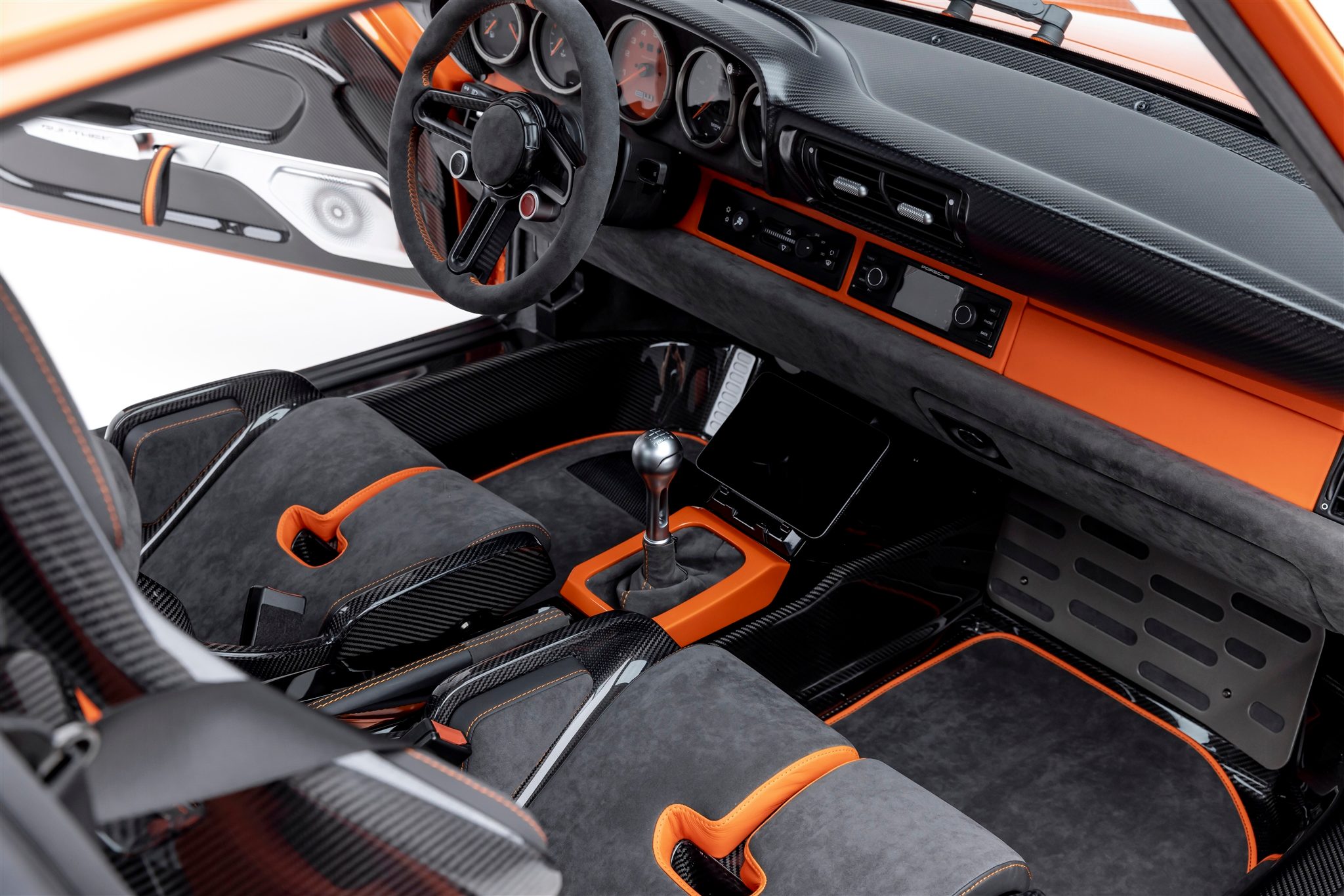

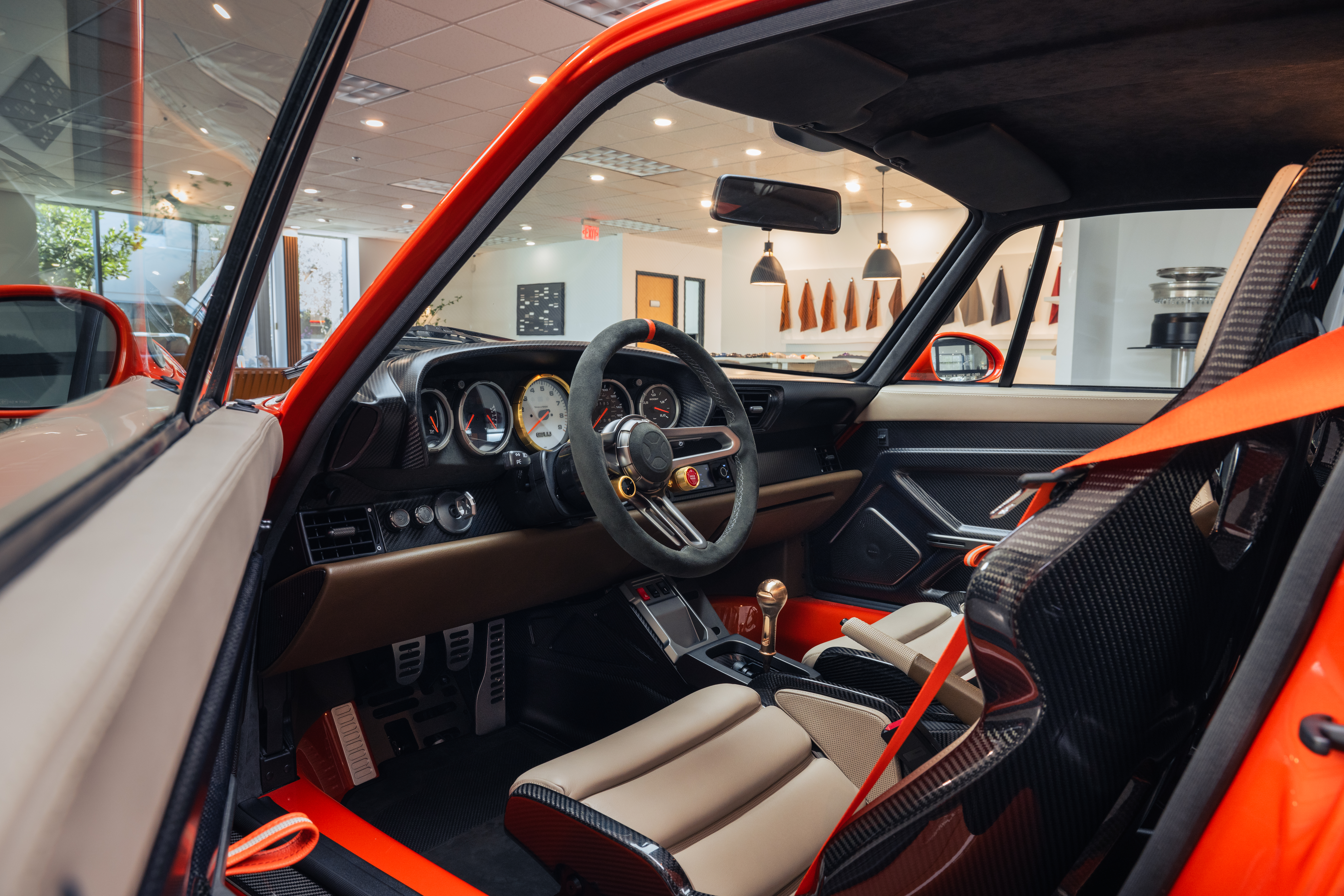

Inside every restoration, Gunther Werks creates the perfect balance between the original interior and newly designed luxurious and performance orientated elements.
Embracing the DNA of the original design while respectfully remastering it. Our own carbon fiber bucket seats, floor panels and rear-seat delete are integral to the transformation. Clients control the customization of the interior with bespoke leather, Alcantara, carbon fiber and billet aluminum accents.
These vehicles are truly bespoke with both the silhouette and soul of a classic, that only the fortunate few are destined to own one.
Limited to 75 Examples.
Only 75 discerning individuals will ever own one, as such, your vehicle will be as unique as you are. Selecting the colour of your bespoke restoration is just the start of the journey. We can make any colour you can imagine or reproduce any colour you desire. From there you select your vehicle’s interior materials, accent colours and finishes, from a vast array of options available. Our designers then work with you to create an interior that is contemporarily modern, combining modern materials, classic leather hides, fusing them together using generations of craftsmen experience.
When your vehicle is ready, you will be able to luxuriate in the natural grain leather, artfully engineered gauges and all combined with modern multimedia technology. Attention to detail is one of our core values and extends to all aspects of our restorations including our coach-built interiors. Once you have specified your bespoke vehicle, you will be safe in the knowledge that there will never be another like yours.
Limited to 75 Examples.
Only 75 discerning individuals will ever own one, as such, your vehicle will be as unique as you are. Selecting the colour of your bespoke restoration is just the start of the journey. We can make any colour you can imagine or reproduce any colour you desire. From there you select your vehicle’s interior materials, accent colours and finishes, from a vast array of options available. Our designers then work with you to create an interior that is contemporarily modern, combining modern materials, classic leather hides, fusing them together using generations of craftsmen experience.
When your vehicle is ready, you will be able to luxuriate in the natural grain leather, artfully engineered gauges and all combined with modern multimedia technology. Attention to detail is one of our core values and extends to all aspects of our restorations including our coach-built interiors. Once you have specified your bespoke vehicle, you will be safe in the knowledge that there will never be another like yours.
Functional Performance

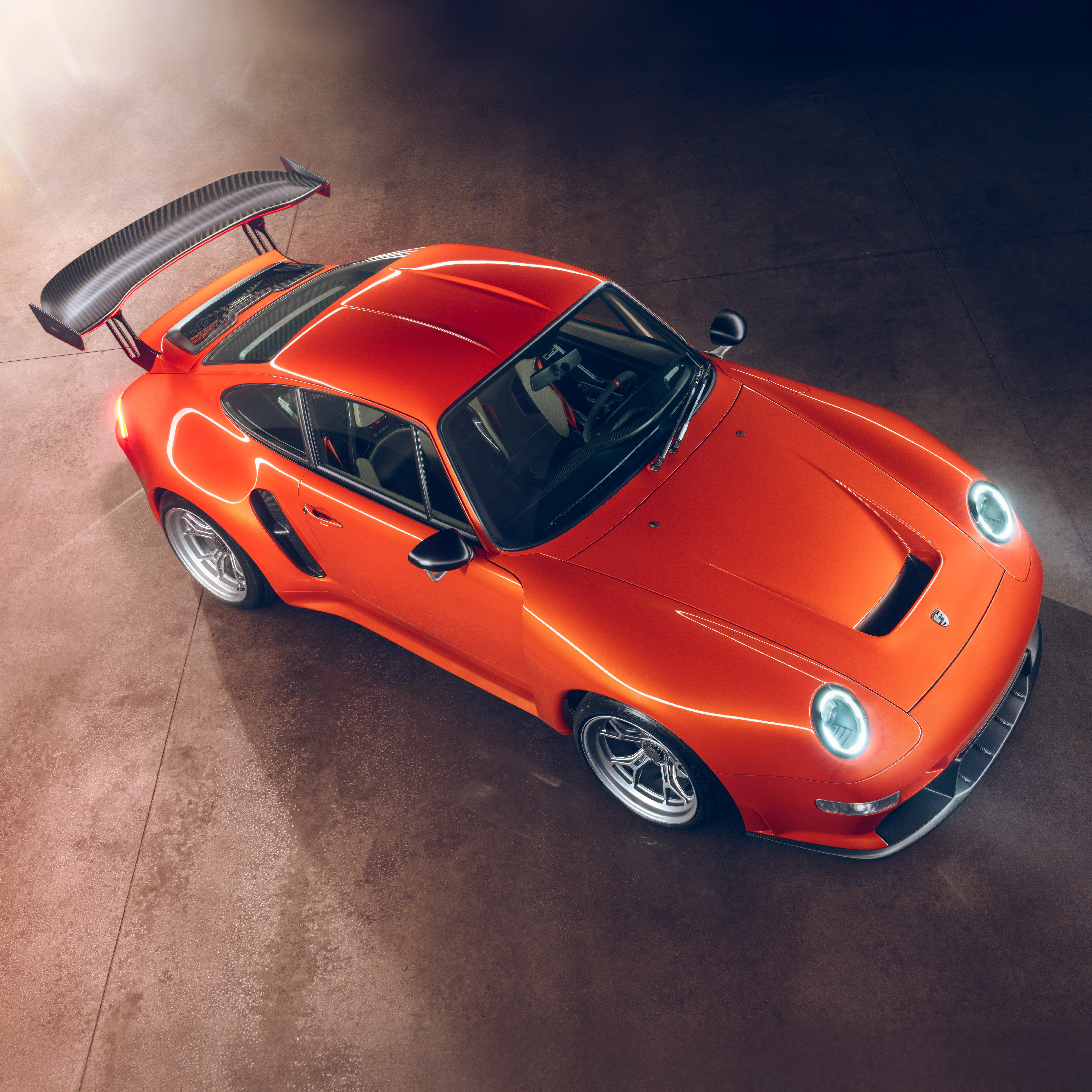

The new carbon fibre body panels follow our ethos of Functional Performance.
Every panel is designed to provide the downforce a car with the performance 750hp endows it with, requires. At the same time the substantial cooling requirements of that exceptional air-cooled engine are also met to maximize engine efficiency. The benefits of making them from carbon fibre result in a saving of over 500 lbs. from the original platform.

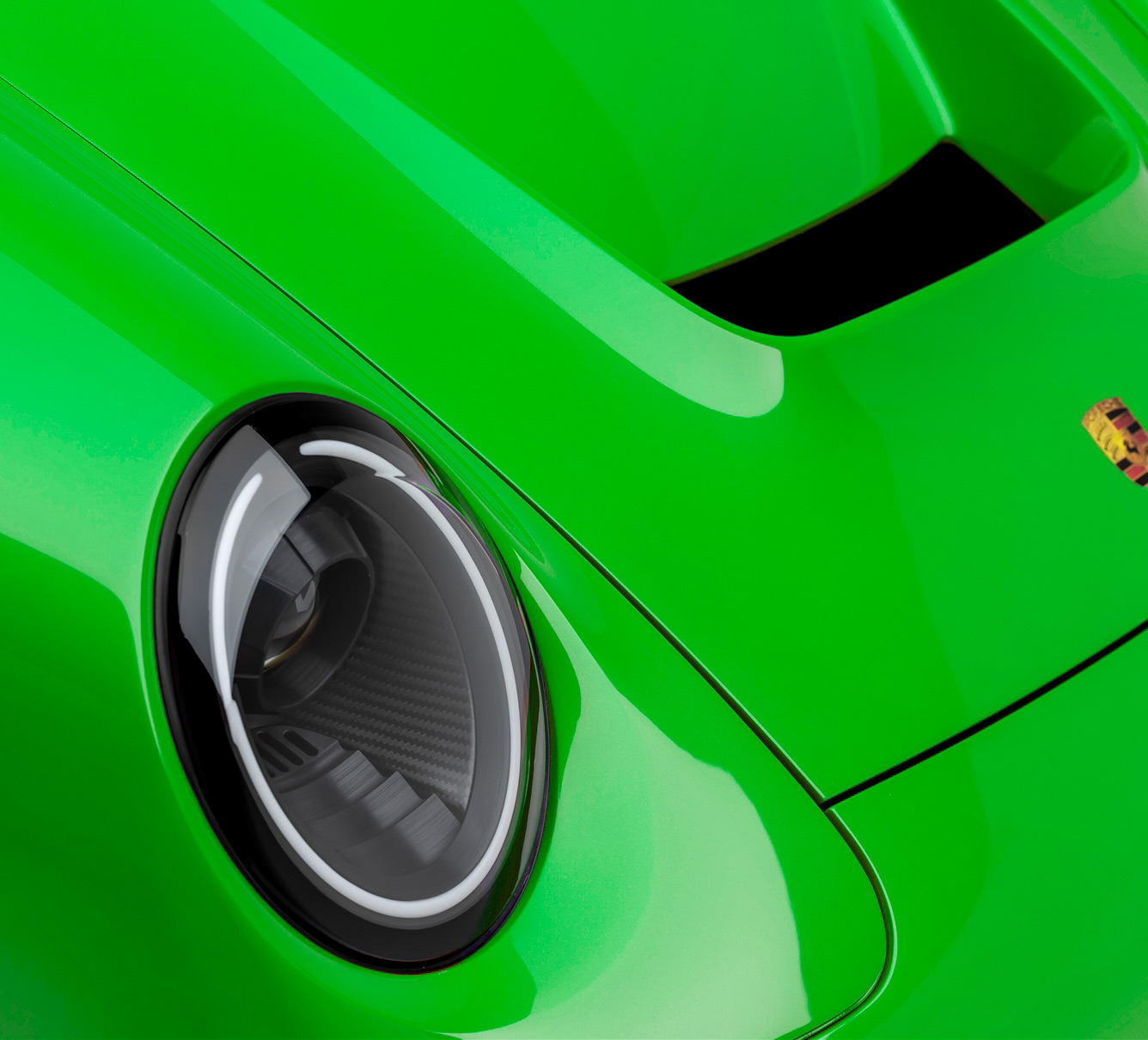

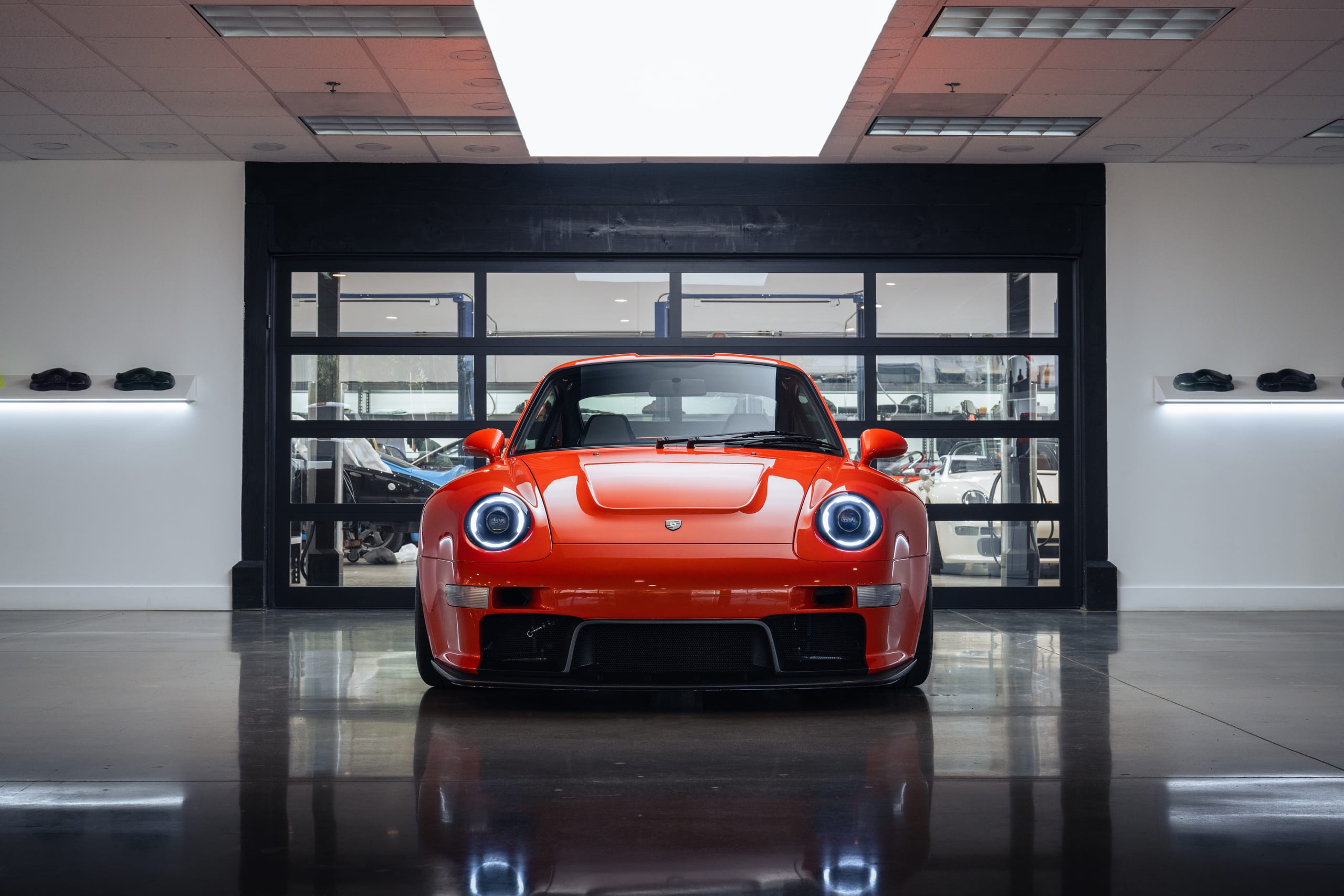

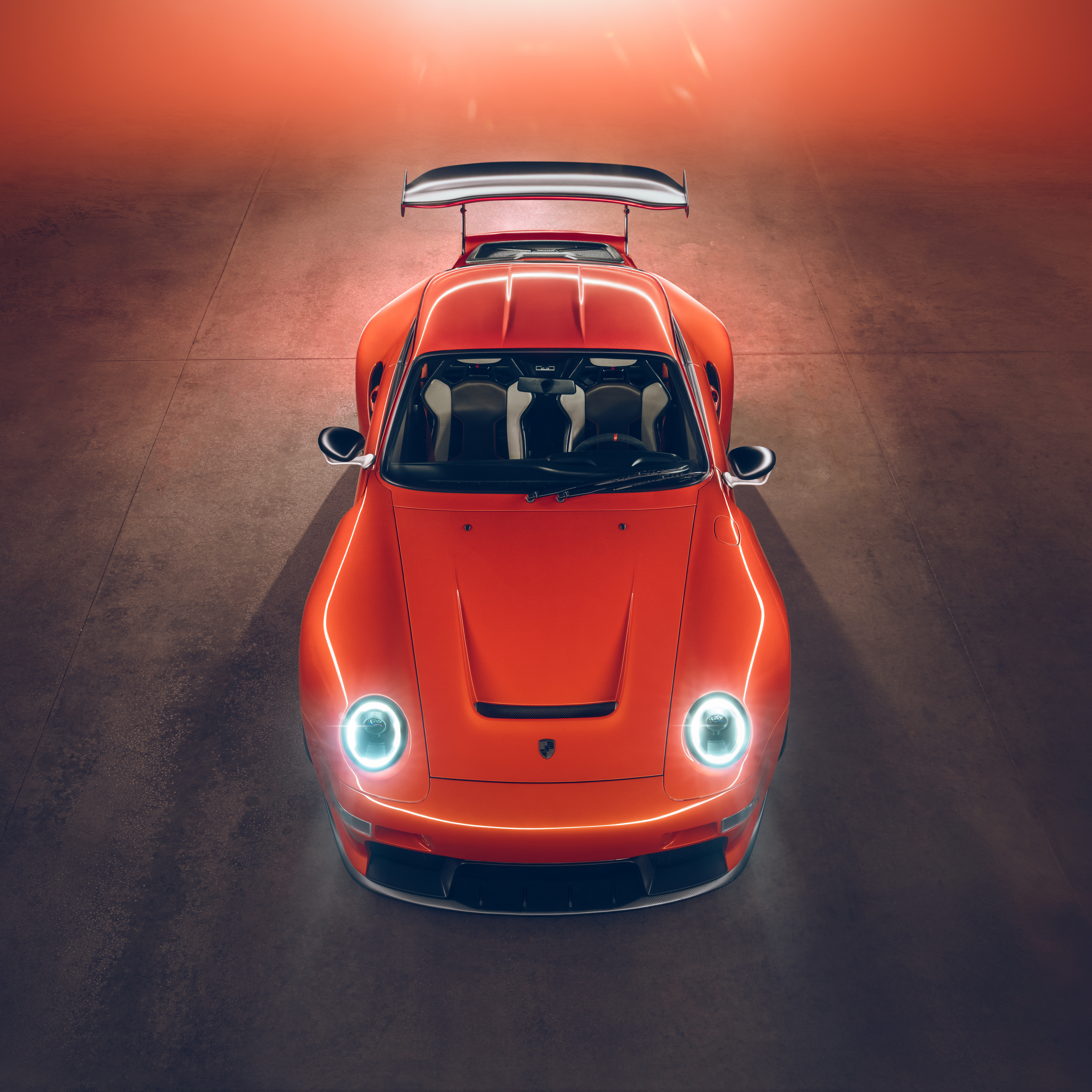

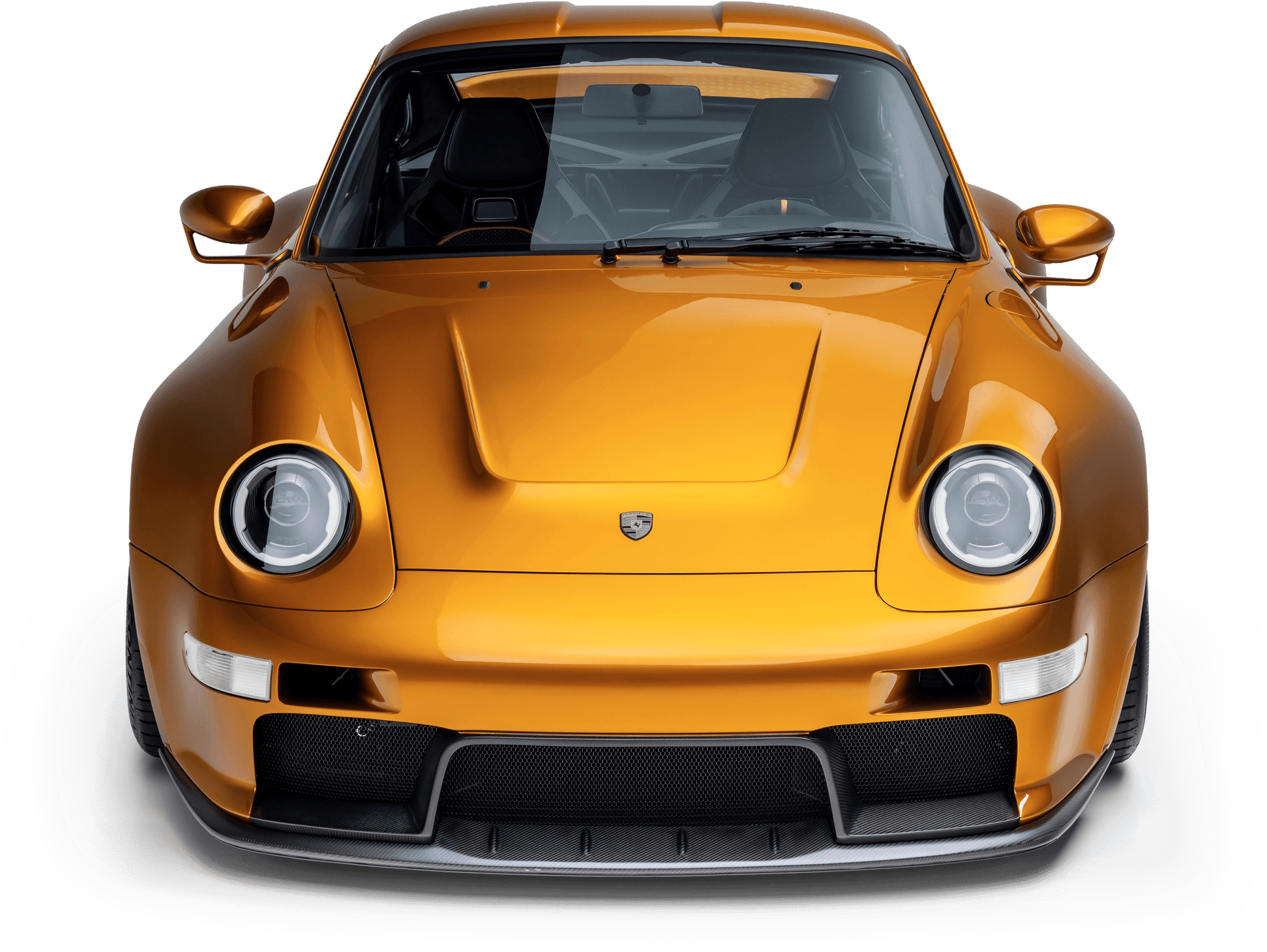

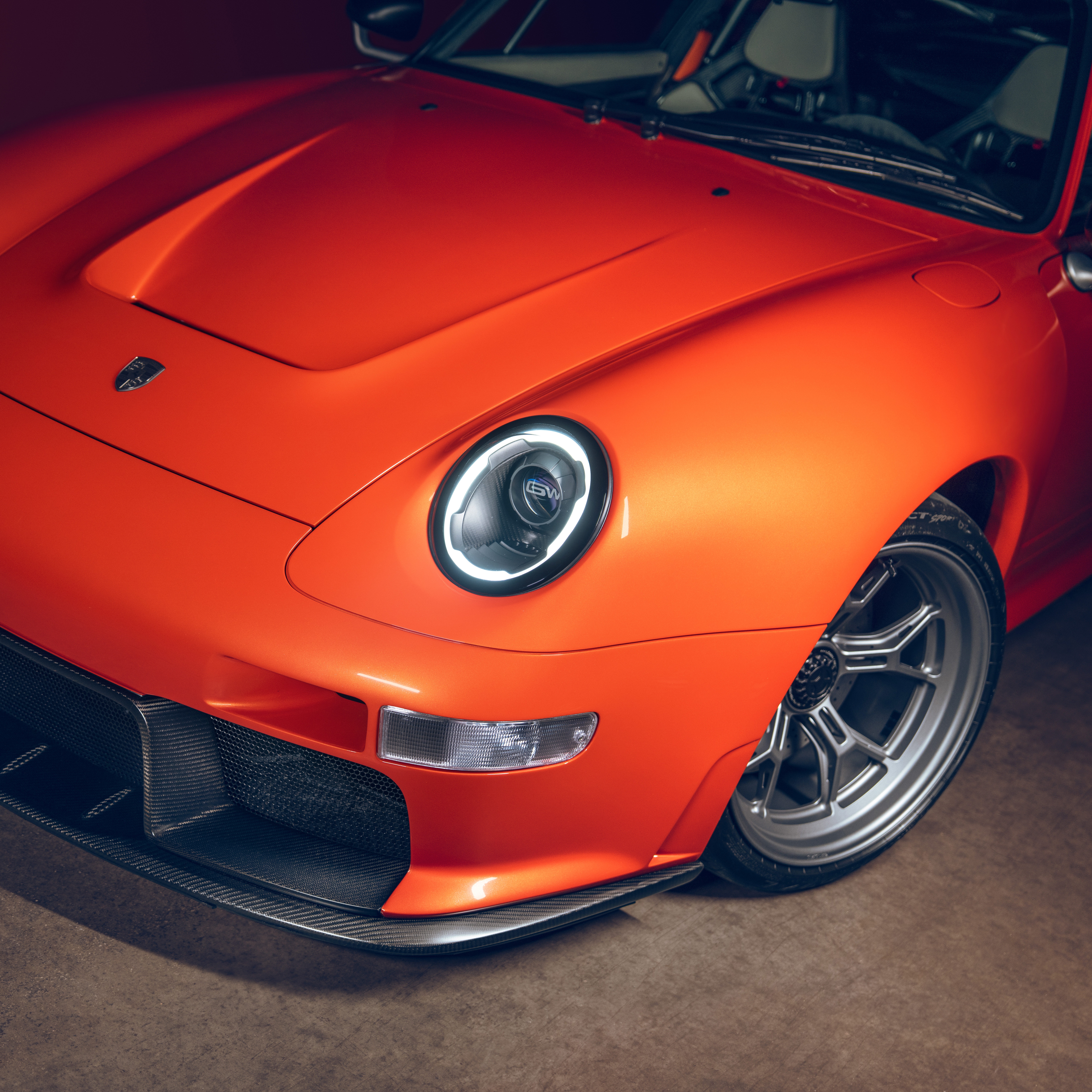

The air-cooled cars were known for their front-end lift at high speed, something the race cars dealt with efficiently. The front vented hood, as used on the factory race cars, takes high pressure air from the front bumper, and exits it to the low-pressure zone on the hood. This not only eliminates any lift but creates downforce.

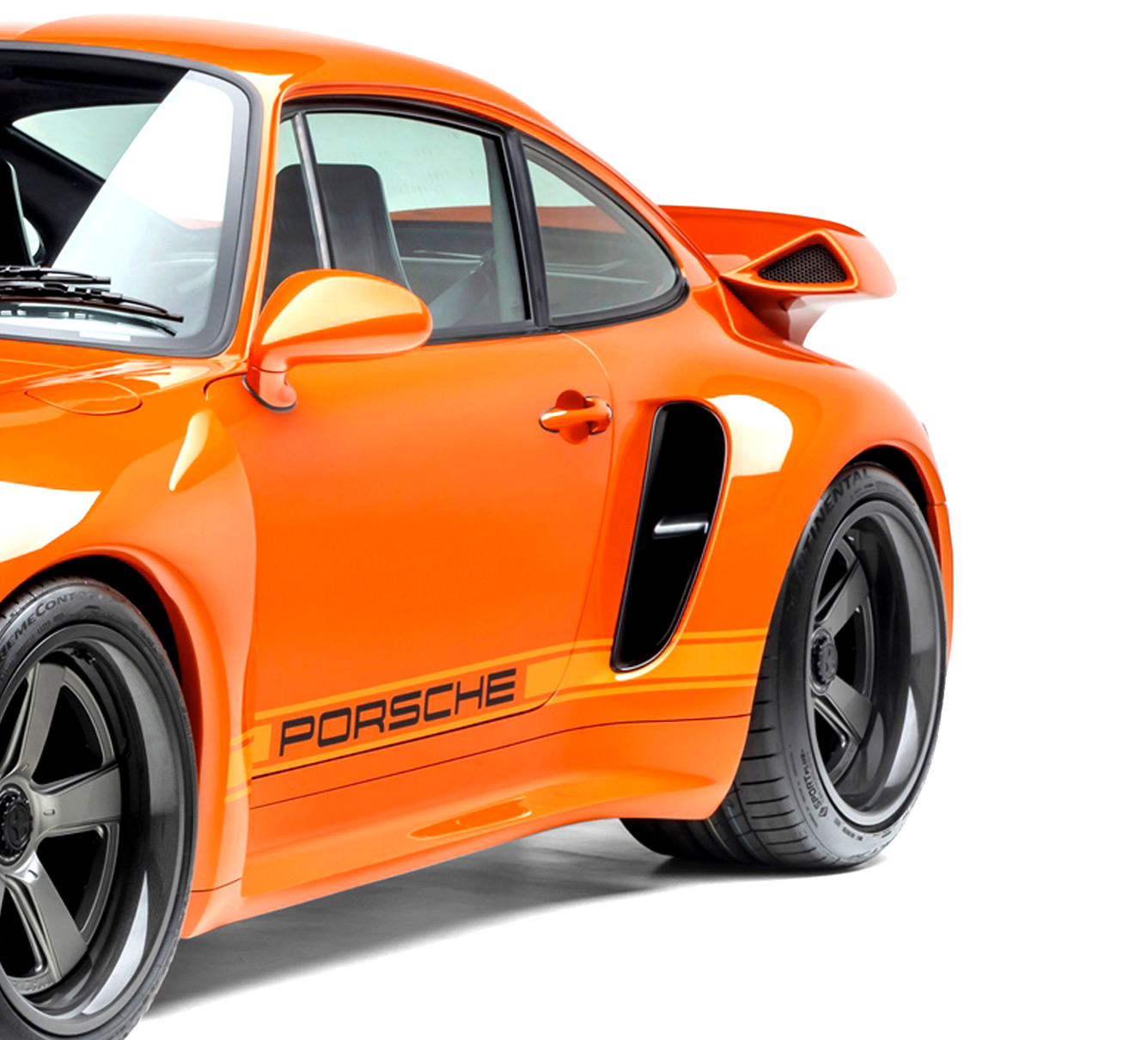

The widened front fenders not only cover the wider front track, but also vent the turbulent air from the front wheel wells. This is channelled to the aero side skirts leading to the Vented rear quarter panels and onto a ram air intake.

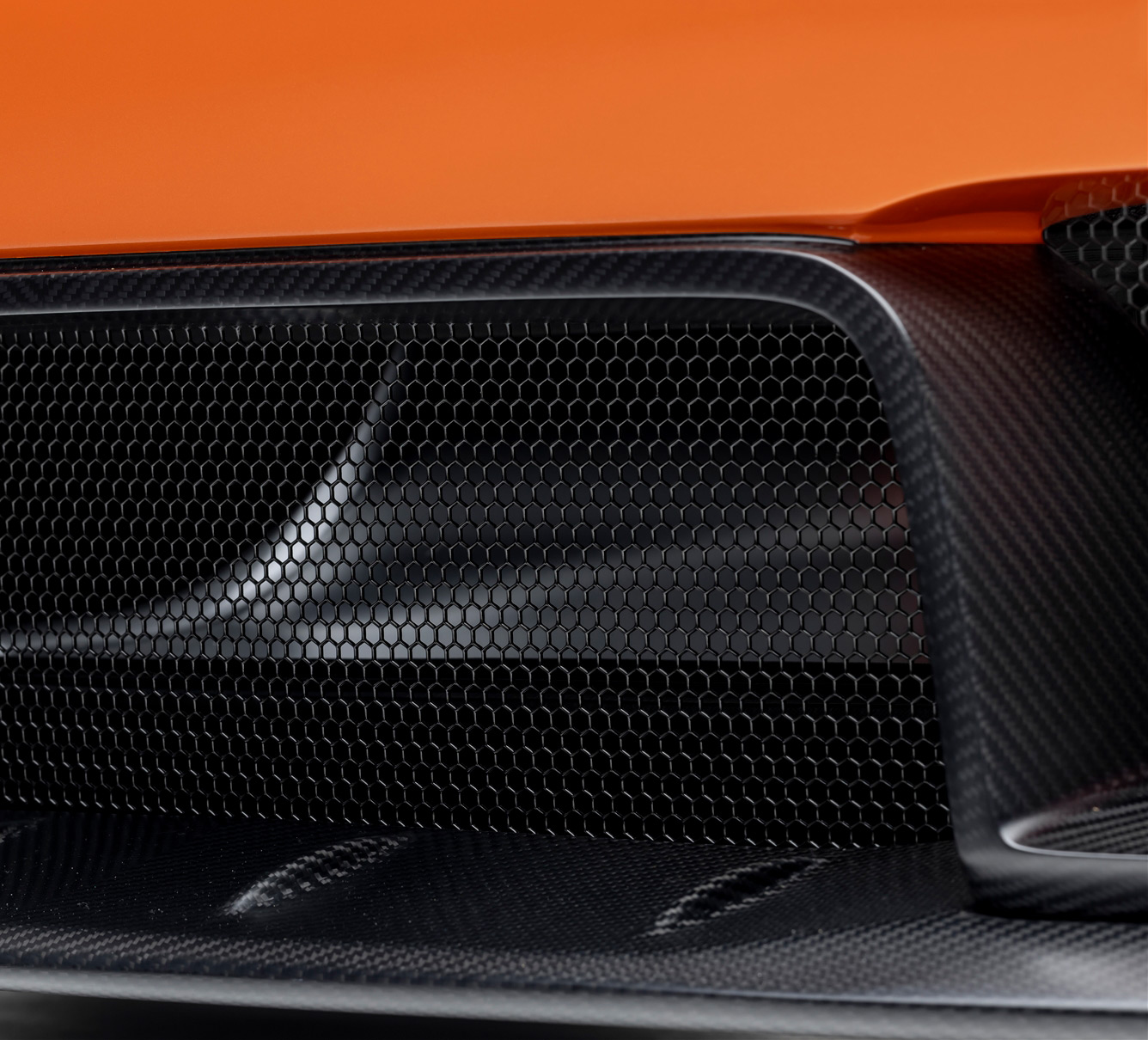

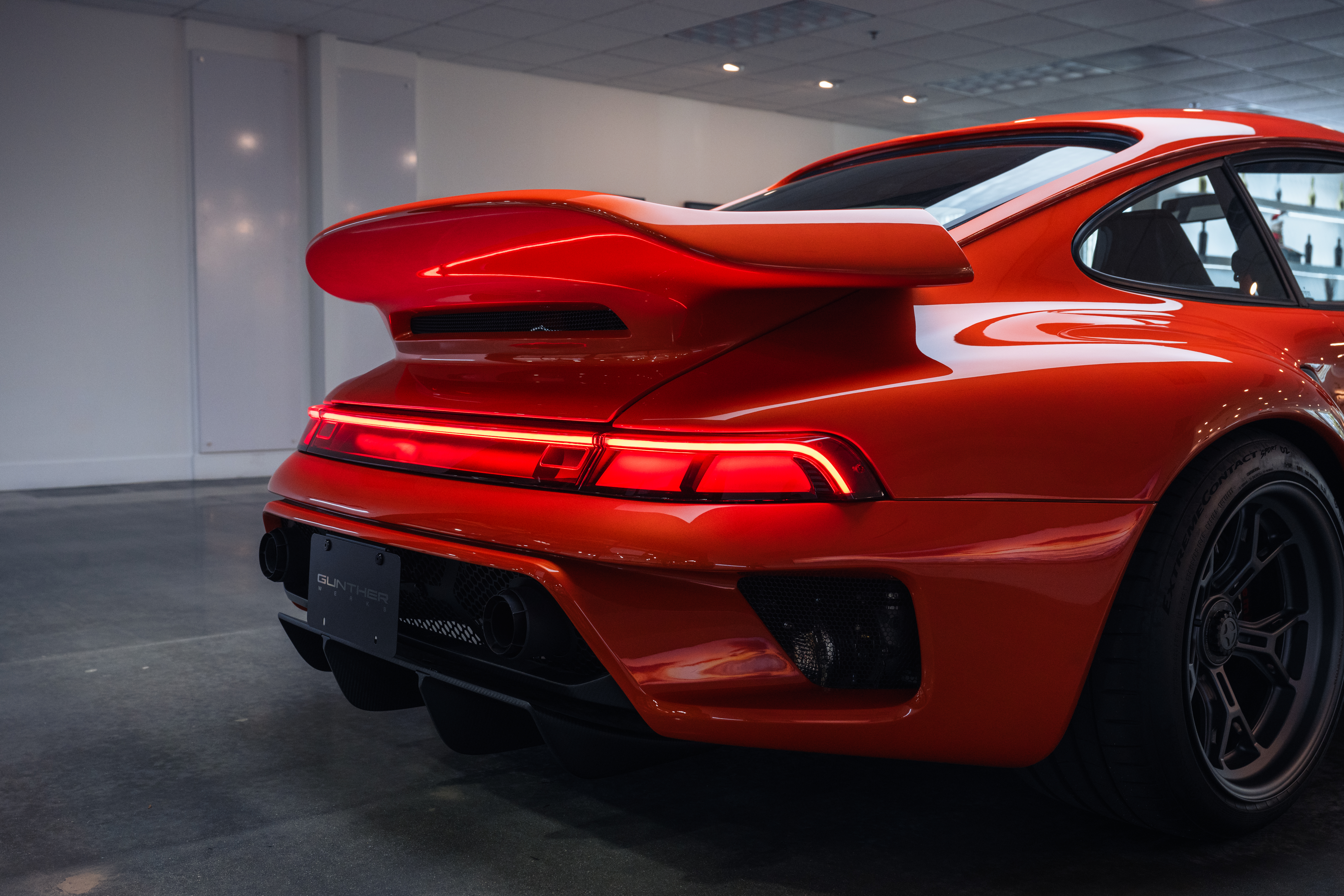

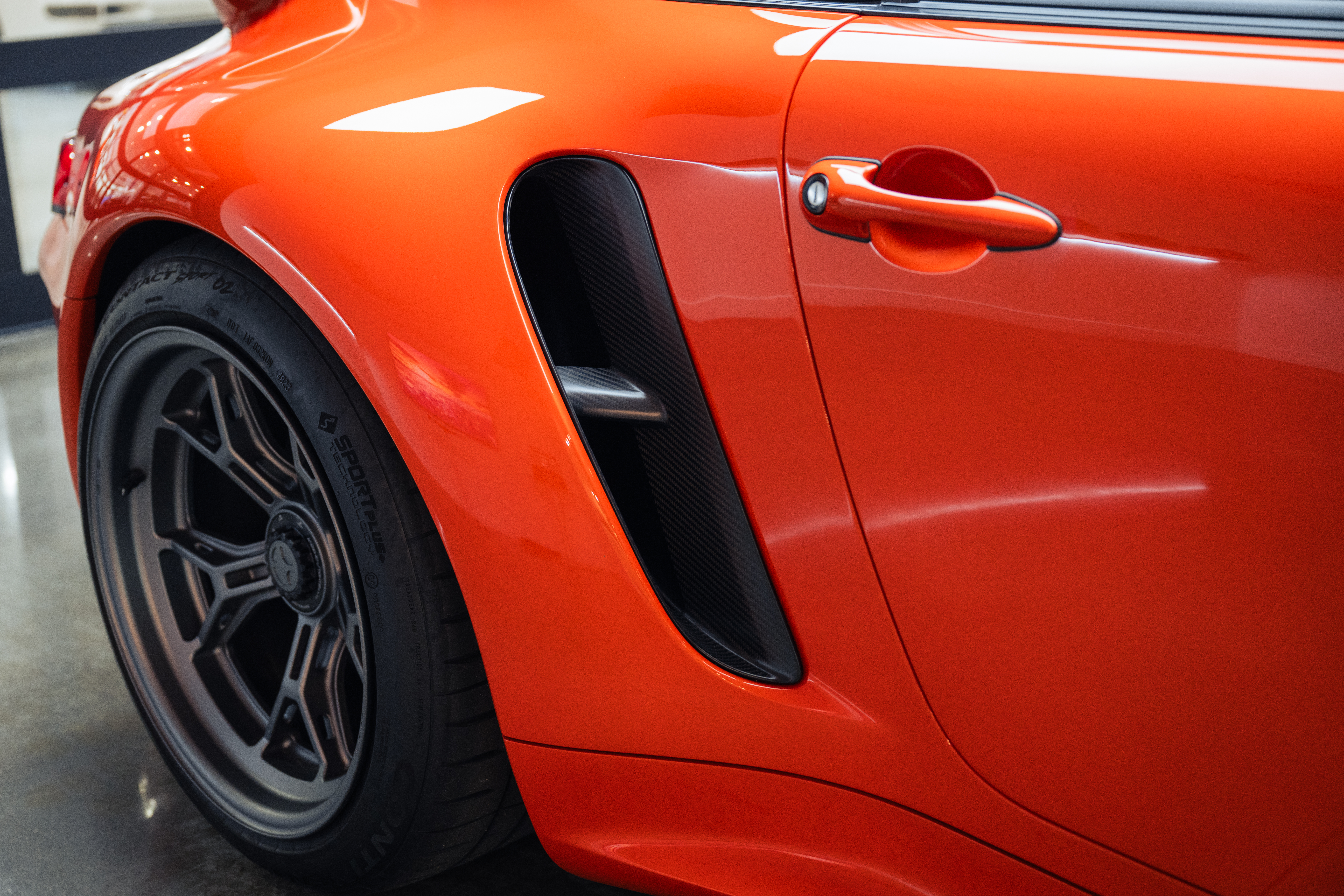

The rear fender vents are not merely cosmetic but have a very specific role. The vent is used to feed air via the most direct route to each turbo, thus optimizing throttle response and minimizing turbo charger spool times, all but eliminating any lag.
At high speed, a ram air effect is created to further maximize the efficiency of vents further.

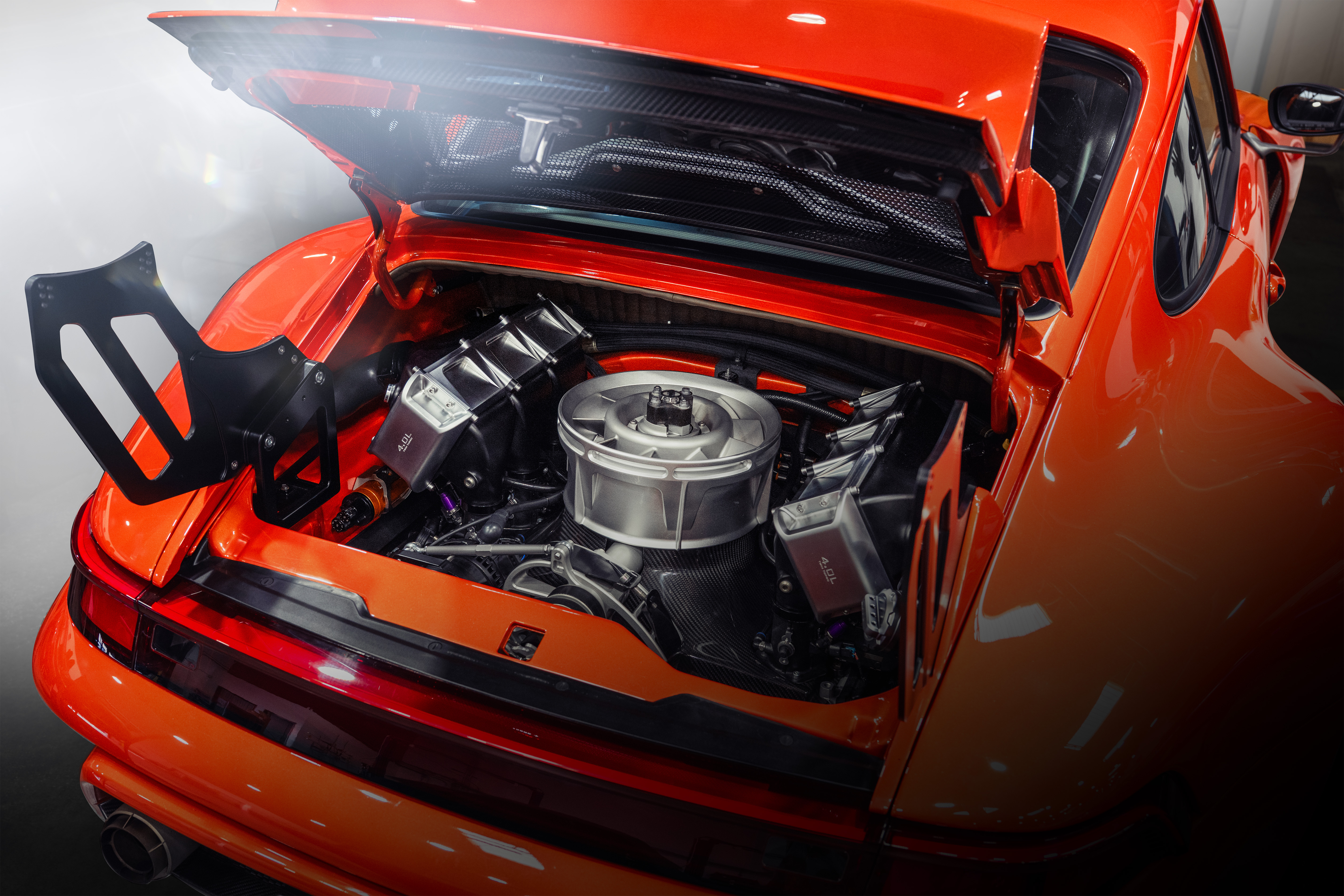

Engine
The engine is always the heart of every Gunther Werks Restoration.
The Turbo features a Gunther Werks Specified, Rothsport Racing built 4.0-liter twin-turbocharged engine that revs to 7500rpm. Power is transferred to a 6-speed manual transmission with bespoke ratios to just the rear wheels.

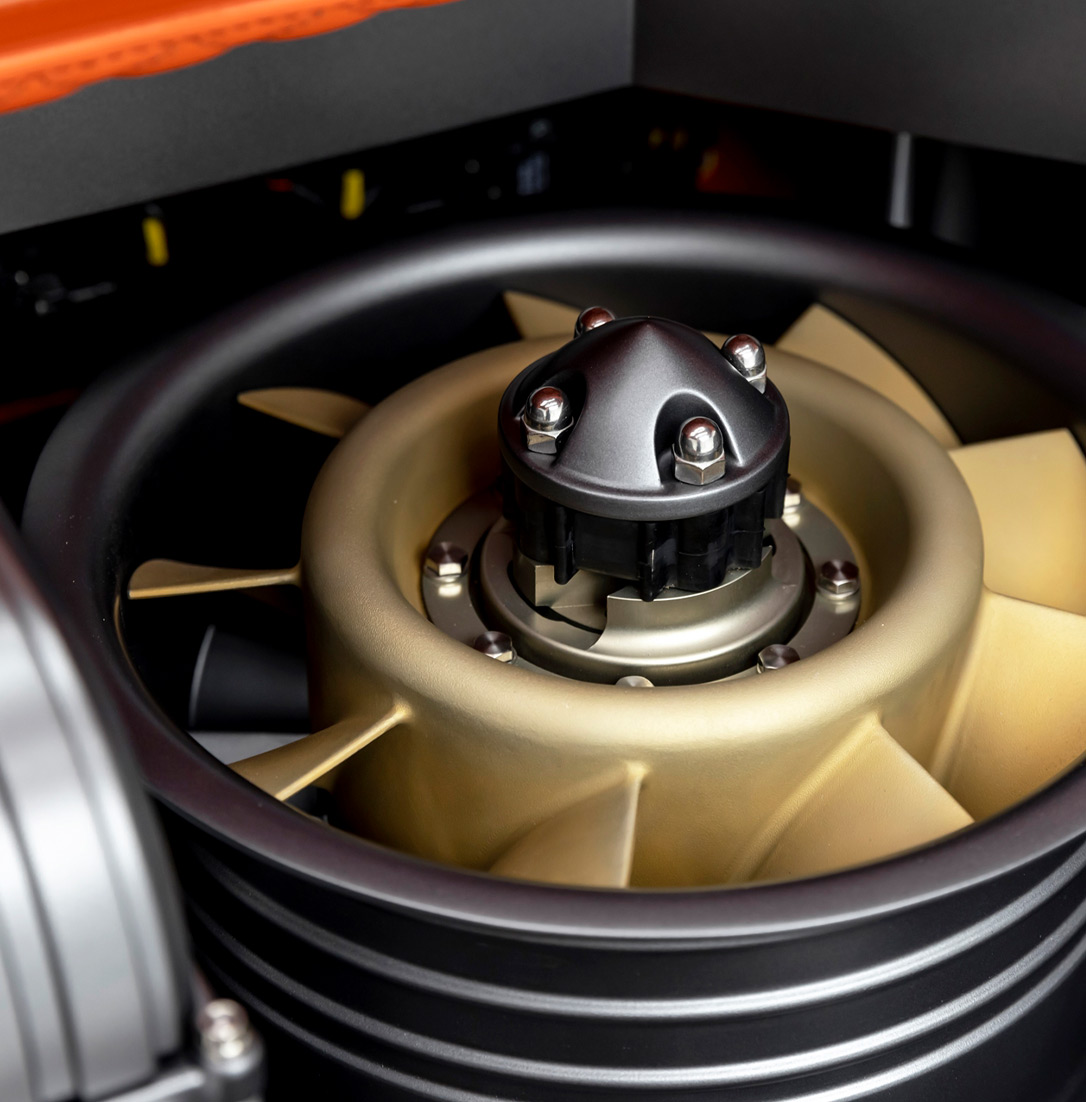

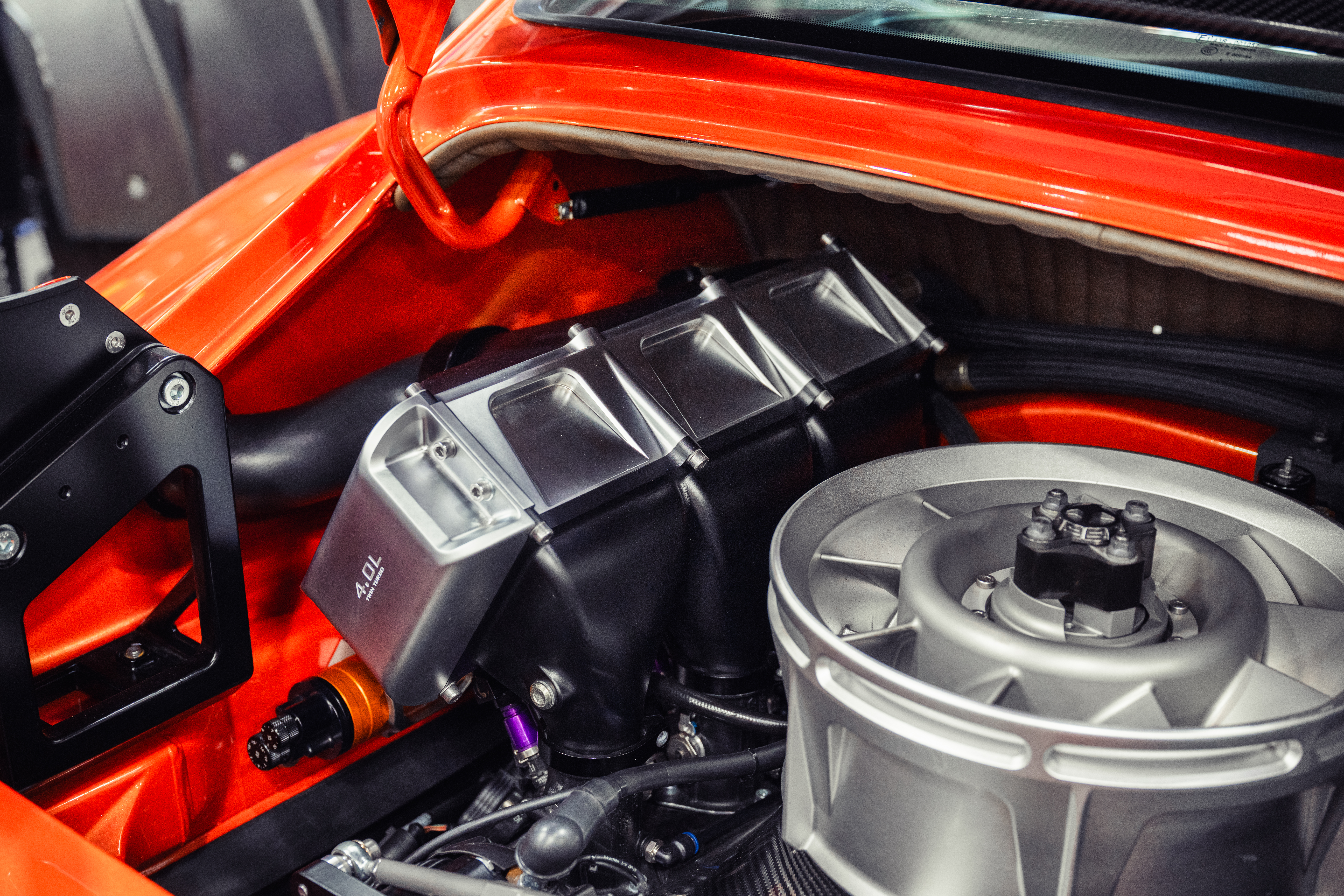

The 4.0L engine uses a race-derived flat fan, which provides more than double the volume of air than the standard vertical fan, but more significantly provides even cooling to all six cylinders.
Inlet temperatures are controlled using twin liquid charge coolers, these being seventeen times more efficient than an air-to-air intercooler. Each of the two charge coolers is fed by its own turbo, which then feeds three individual throttle bodies straight to each cylinder. This maximises throttle response and coupled with the shortest route from the turbo to cylinder, will ensure minimal turbo lag. All of this is controlled by a sophisticated multimap Motec engine management system. Output is 600hp in standard form, but with a press of the steering wheel mounted track mode setting, this increases to a formidable 750hp.
Safety & Interior
< Swipe Below >
Technical Specifications

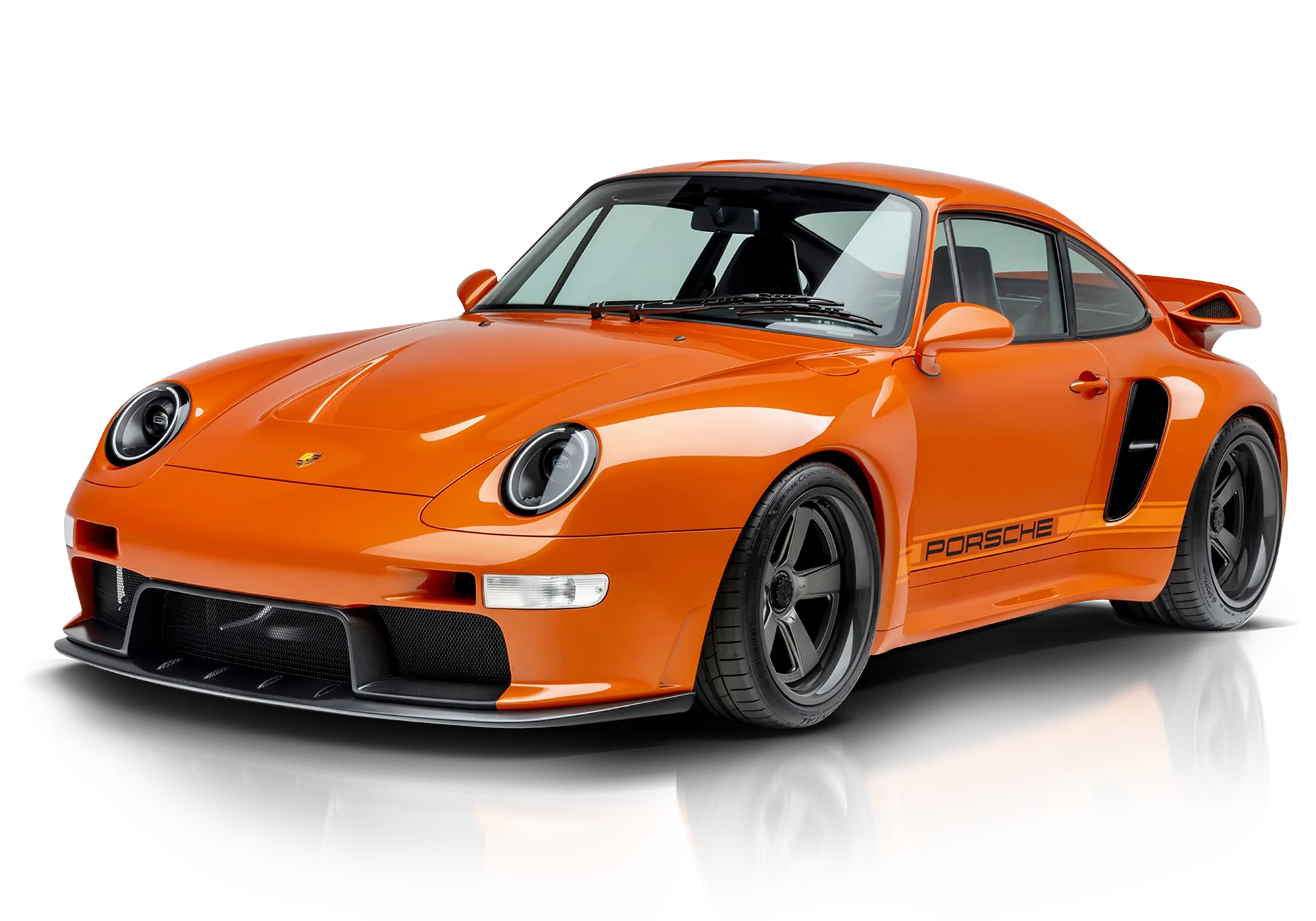

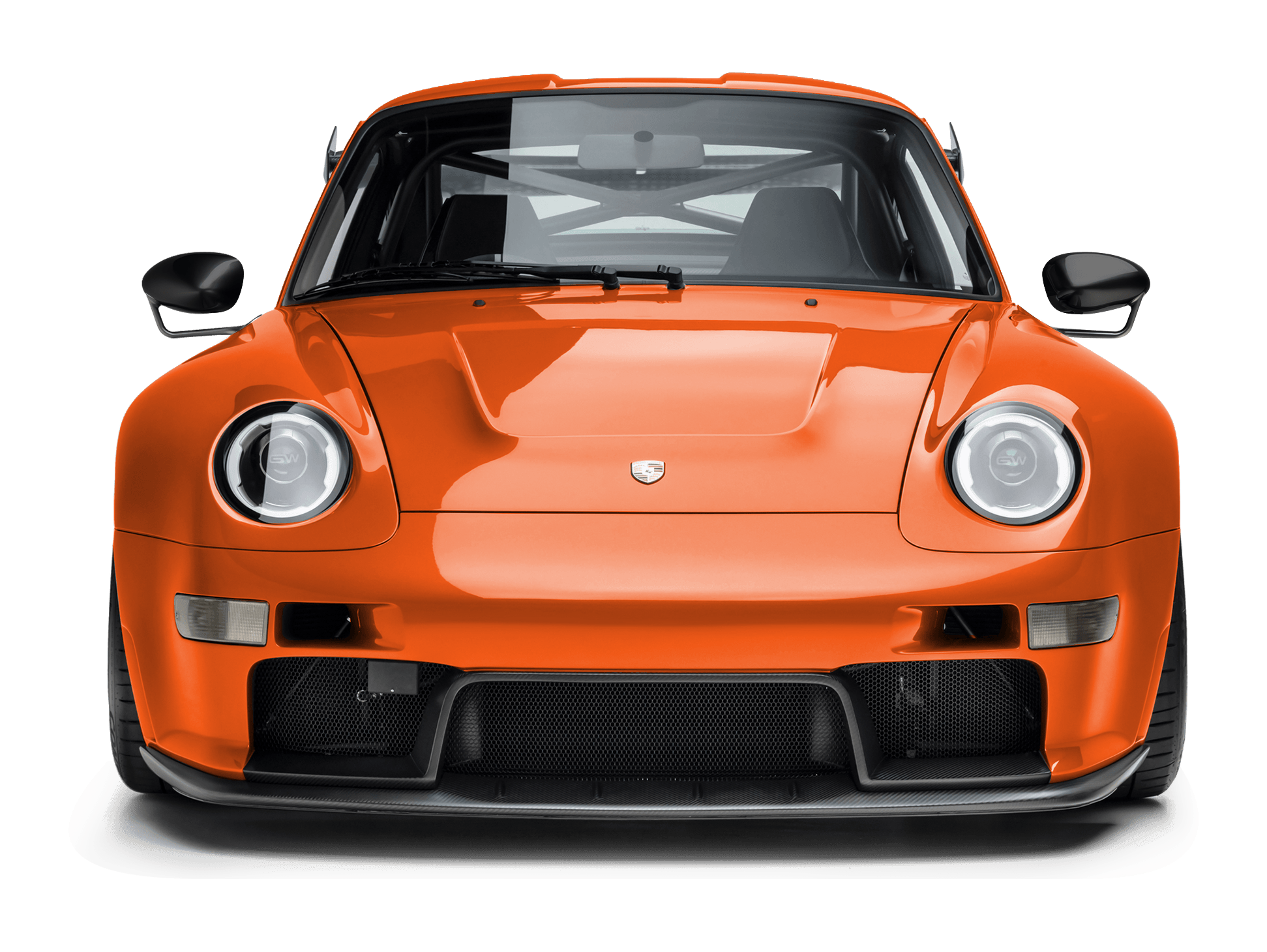

GUNTHER WERKS 993 TURBO
An Engineering Marvel
The Porsche 911® remastered by Gunther Werks is a modern and respectful homage to an icon - a high-performance, bespoke vehicle paying homage to the naturally aspirated automobiles of a quarter-century ago.
850
bhp
IN TRACK MODE
Engine
Project Tornado features a Rothsport Racing built 4.0-liter twin-turbo engine. Power is transferred to a 6-speed manual transmission with rear wheel drive.
Using a racing-derived flat fan and liquid charged cooling, the engine is controlled by a sophisticated Bi mode Motec engine management system, its output being an astonishing 600hp in standard form, with track mode seeing that output increase to 850hp.
- 4.0 Liter, 600bhp-850bhp, 660 lbft Torque
- Flat Fan Cooling
- Billet Barrels, Billet Crank, Mahle Pistons
- Forged Conrods, on Plug Coil Ignition
- Individual Throttle Bodies
- Twin Charge Coolers
- Motec ECU, 7500rpm Redline
- Equal Length Stainless Steel Headers
- Motec Engine Management & Bespoke Tuning
Drivetrain

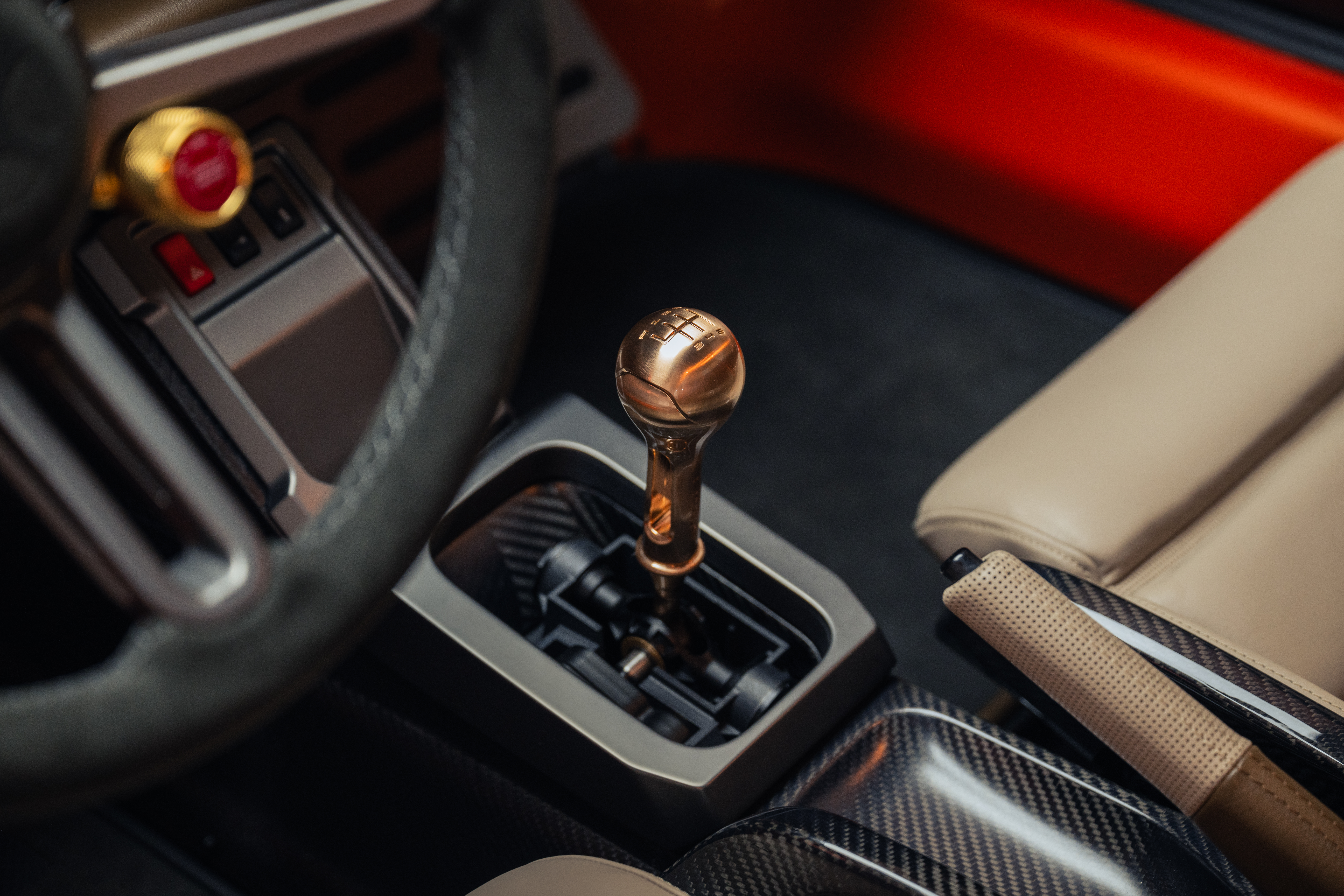

- Getrag 6 Speed with Custom Gear Ratios
- Single Mass Mid-weight Fly Wheel and Uprated Single-plate Clutch
- Carbon Clutch Differential with 40% Locking
Chassis
- Widened Racing Spec Front Track
- Bespoke DGR Computer Controlled Active Coil Over Suspension
- Uprated Anti Rolls Bars Front & Rear
- Hydraulic Nose Lift System
- Lightweight Bespoke Gunther Werks Spec Uprights
- Bespoke Suspension Arms w/ Upgraded Bushings & Revised Geometry
- Front Strut Brace

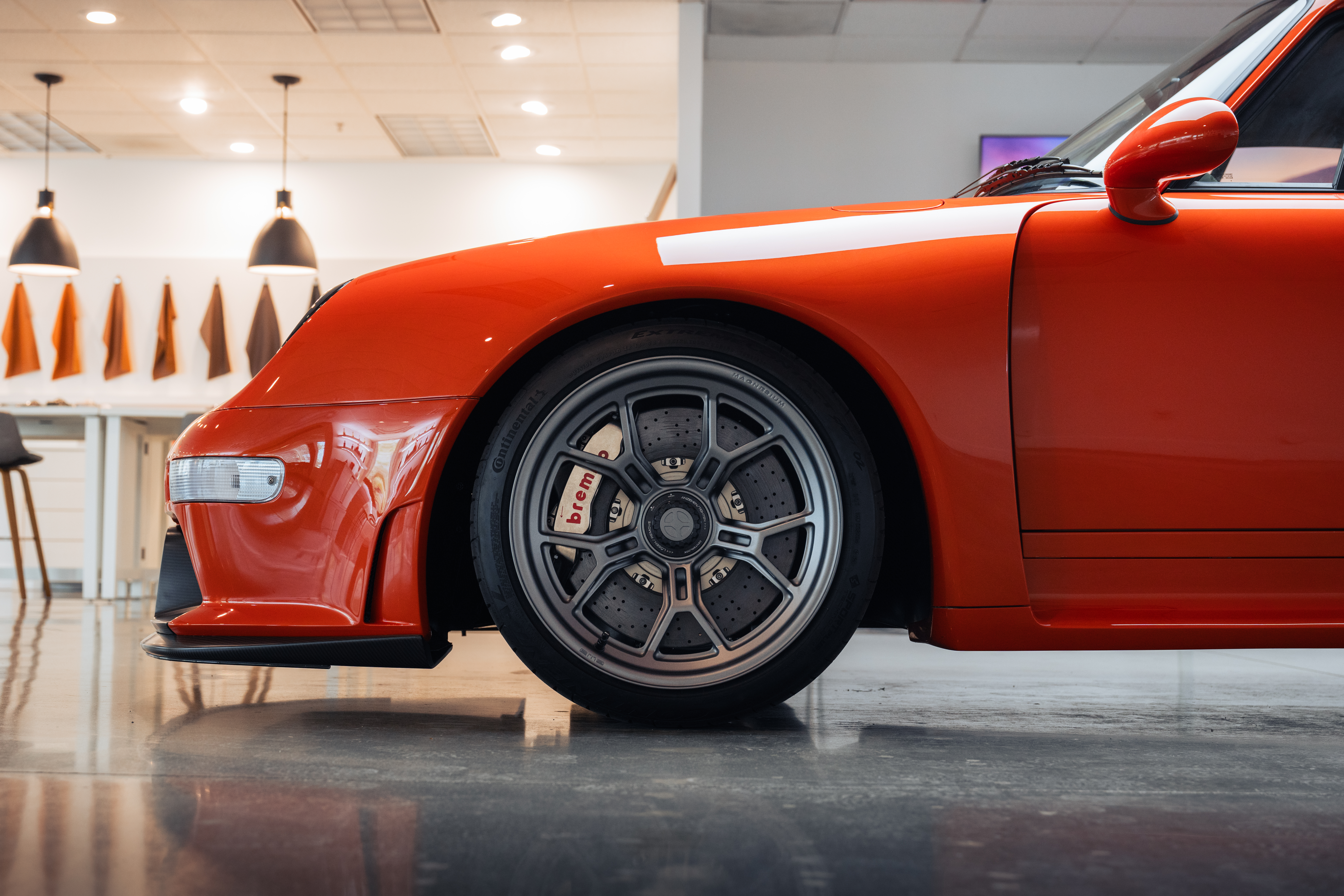

Brakes
- Brembo GTR 6 Piston 355mm x 32mm Slotted Disks Front
- Brembo GTR 4 Piston 345mm x 28mm Slotted Disks Rear
- Optional CCMR Carbon Brake Option
- Brembo Pads & Braided Brake Lines
- Upgraded Brake Booster
- Cross Drilled Brakes - A No Cost Option
Wheels & Tires
- Gunther Werks 18” Forged Magnesium & Carbon Fiber 2 Piece Wheels*
- Gunther Werks 18” T-6061 Forged Aluminium 3 Piece Wheels
- 5 Spoke Classic Design
- Step Lip Barrels
- Billet Aluminium Centre caps
- Aluminium Valve Stems
- Titanium Wheel Hardware
- Titanium Wheel Studs
- 18x11” Front | 18x13” Rear
* Optional
Body
- Carbon Front Fenders
- Carbon Rear Quarter Panels
- Carbon Side Skirts
- Carbon Roof
- Carbon Front Hood
- Carbon Front Bumper
- Carbon Rear Bumper

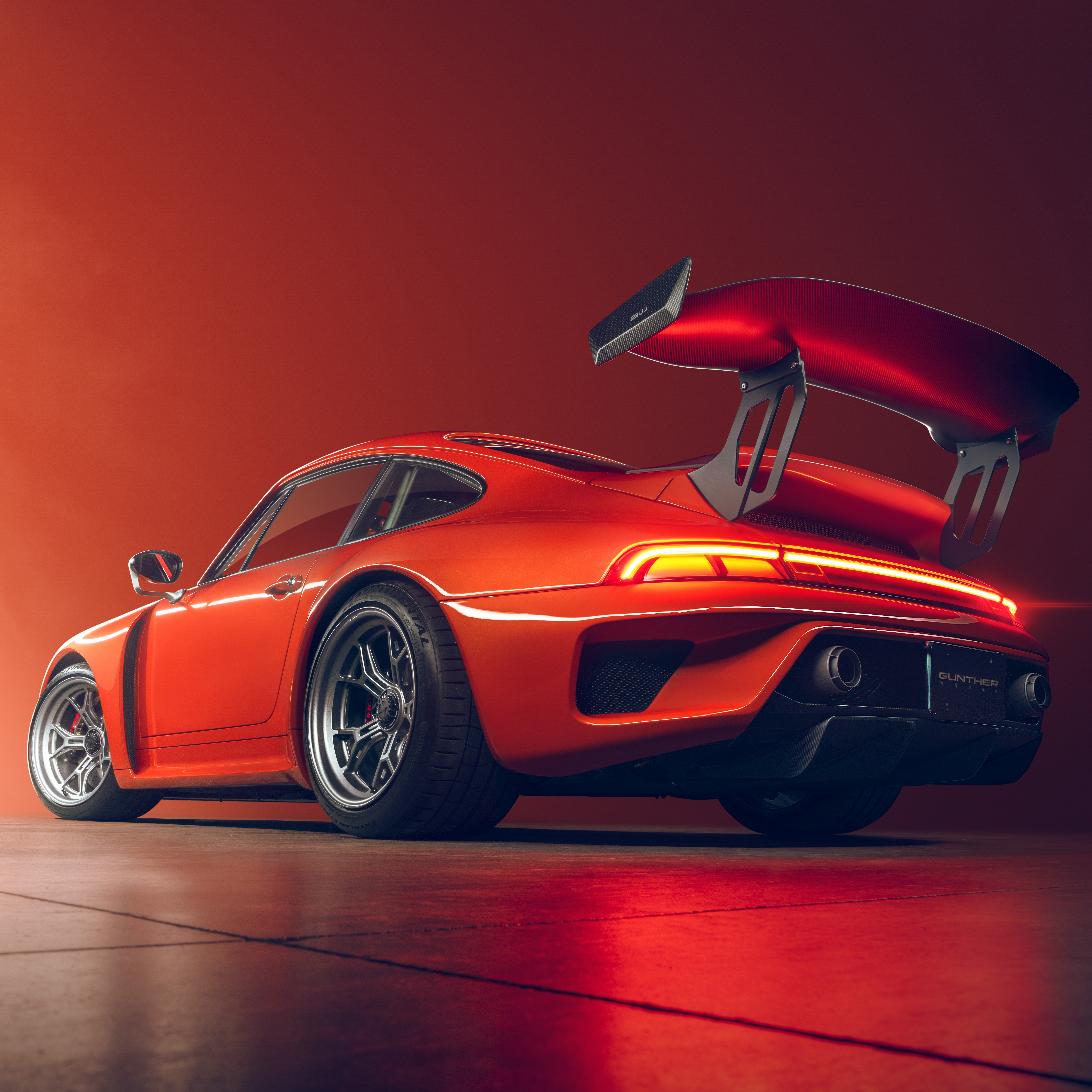

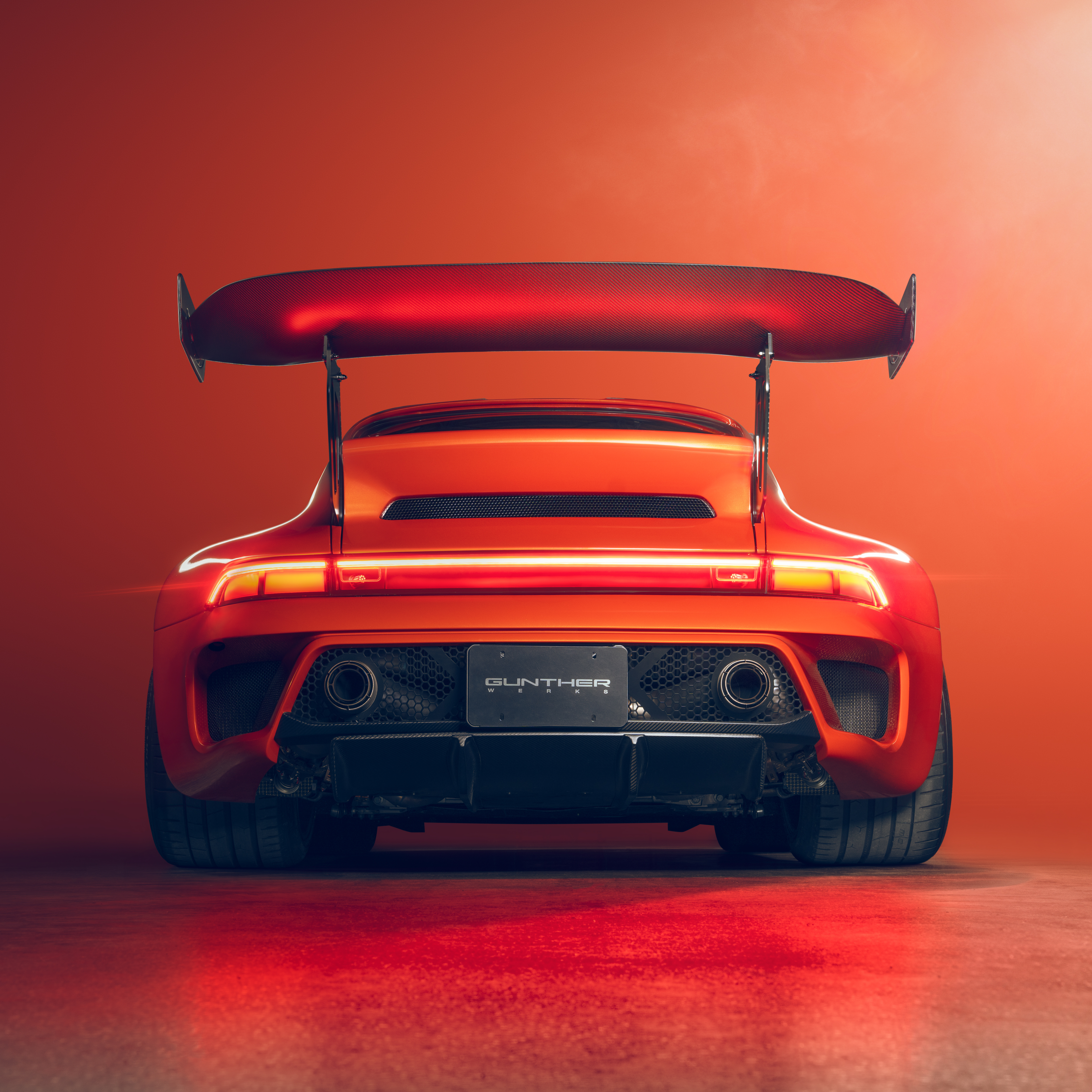

- Carbon Rear Wing
- Carbon Rear Duck Tail (Optional)
- ABS Front Bumper Skid Plates
Lighting

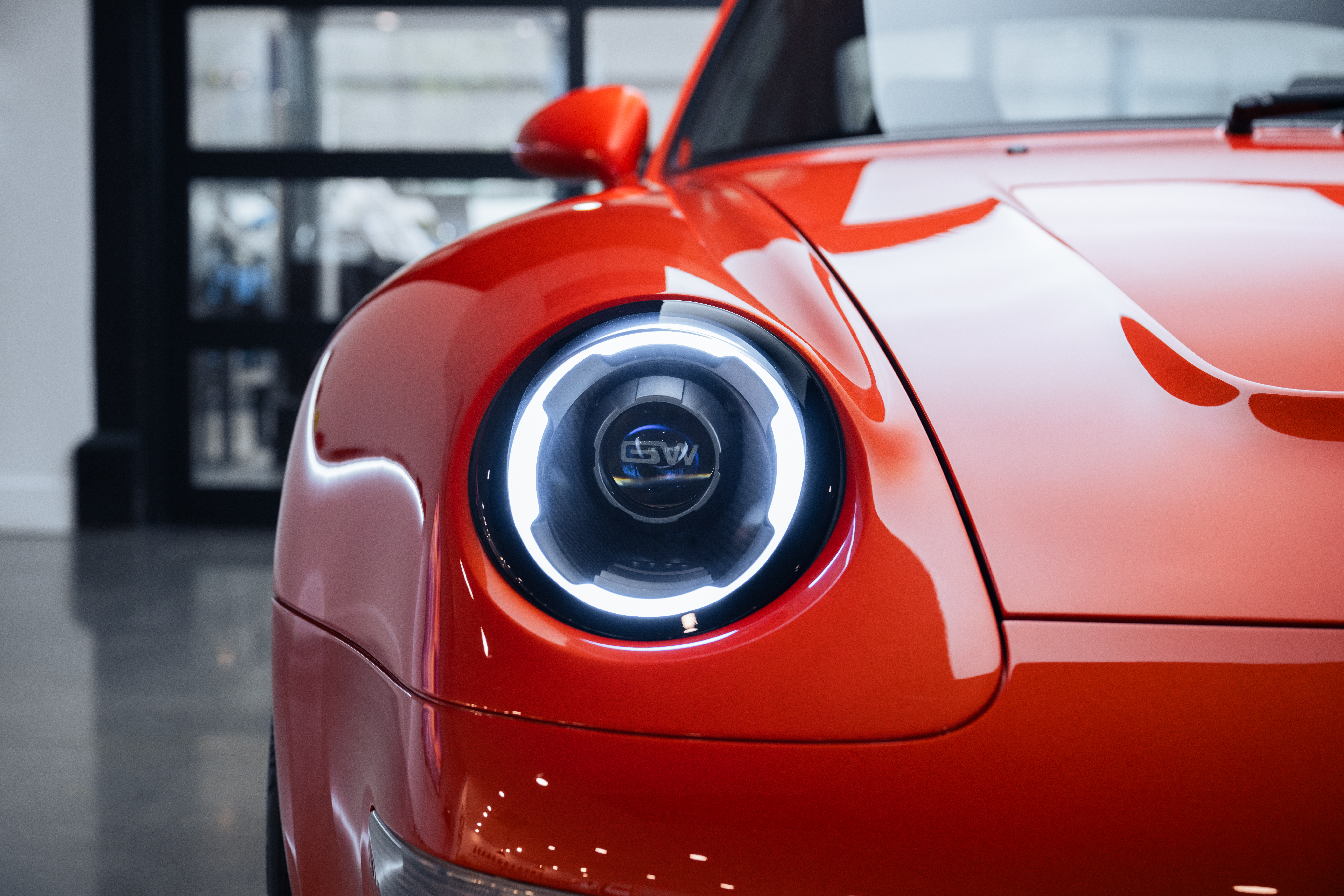

- Milled Aluminum Headlight Housings Utilizing Bi-LED Lighting
- Technology Inside and Out
- High Strength Aerospace Headlight Lenses
- Upgraded LED Rear Lights LED Front Turn Signals
Interior
- Carbon Fiber Backed Bucket Seats Trimmed In Fine Leather And Alcantara
- Carbon Fiber Rear Seat Delete
- Alcantara And Leather Doors, Dashboard, Center Console, Armrests, Rear
- Quarter Panels And Dashboard Insert
- Alcantara Headliner
- Porsche Classic Steering Wheel In Leather

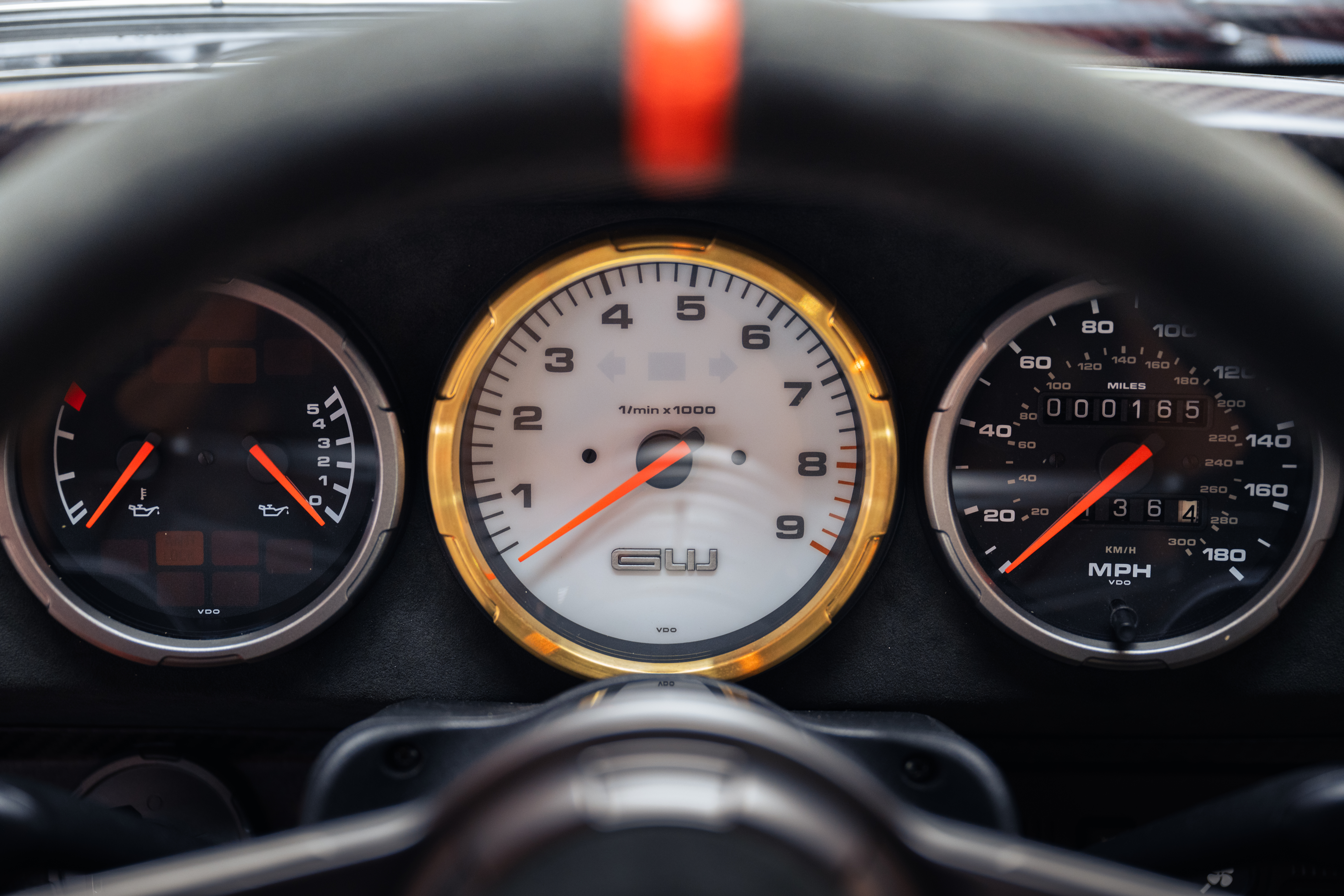

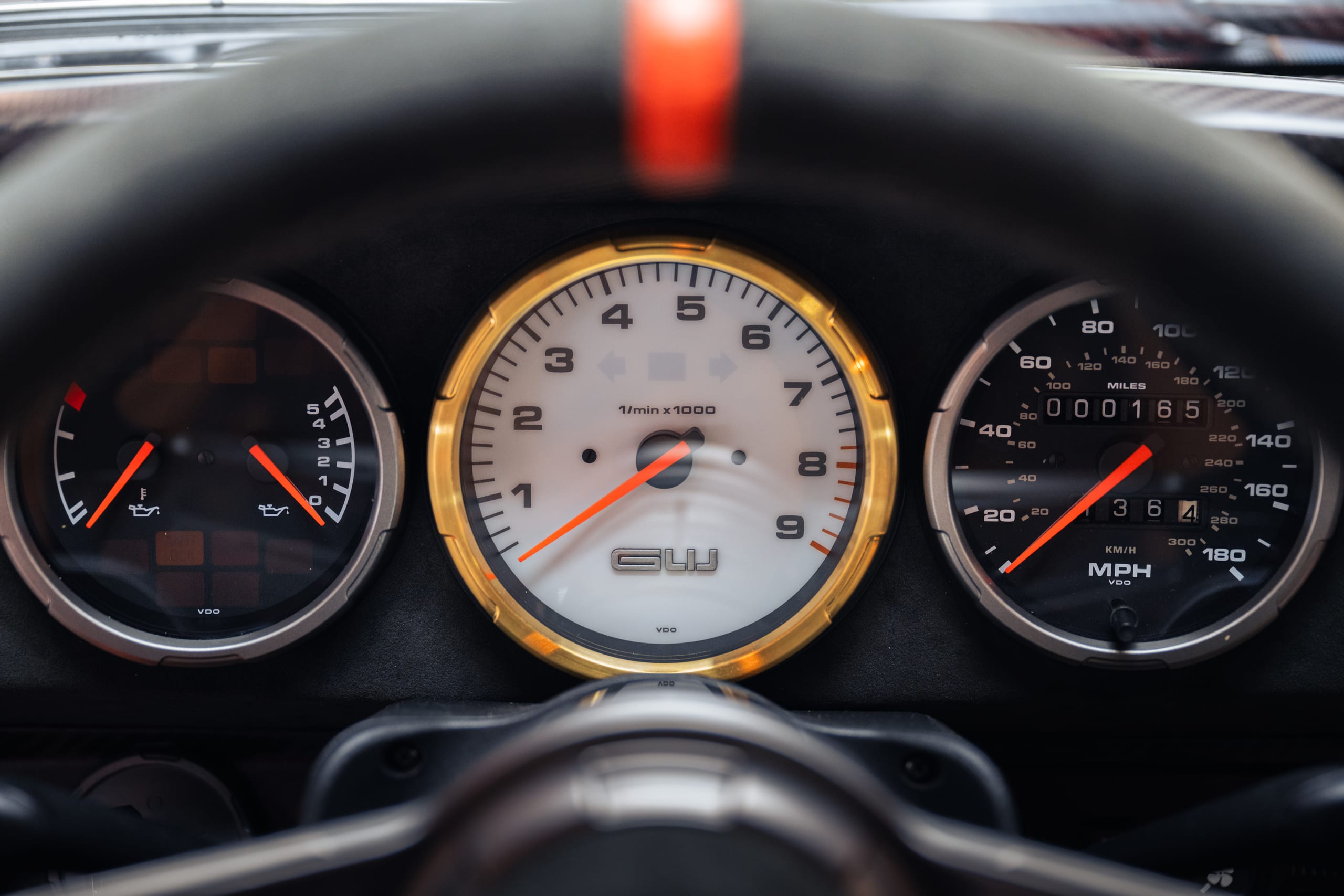

- Reworked Dials In Classic Black And White
- Red Rev Counter Re-Calibrated To 9000rpm
- Slotted Pedals & Foot Rest Made In Forged Aluminum
- Aluminum Kick Panels
- Porsche Classic Radio
- Aerospace Grade German Carpets Throughout
- Carbon Interior Paneling (Optional)
- Carbon Fiber Track Mats
- Leather Hand Brake Tray And Rear Tray
- Carbon Door Sills
- CNC Machined Billet Door Handles
- CNC Machined Billet Ignition Cover
- Beveled Ring Dials
- Billet Aluminum Ignition Key
- 2-Piece Carbon Fiber Front Trunk Liner
- Billet Forged Oil Filler Cap
